Fruit Vegetable Sorter Weight Sorting Machine

料盒式重量分选系列2
料盒式重量分选系列1
料盒式重量分选系列4
料盒式重量分选系列3
Magnifier
料盒式重量分选系列2
料盒式重量分选系列1
料盒式重量分选系列4
料盒式重量分选系列3

Fruit Vegetable Sorter Weight Sorting Machine

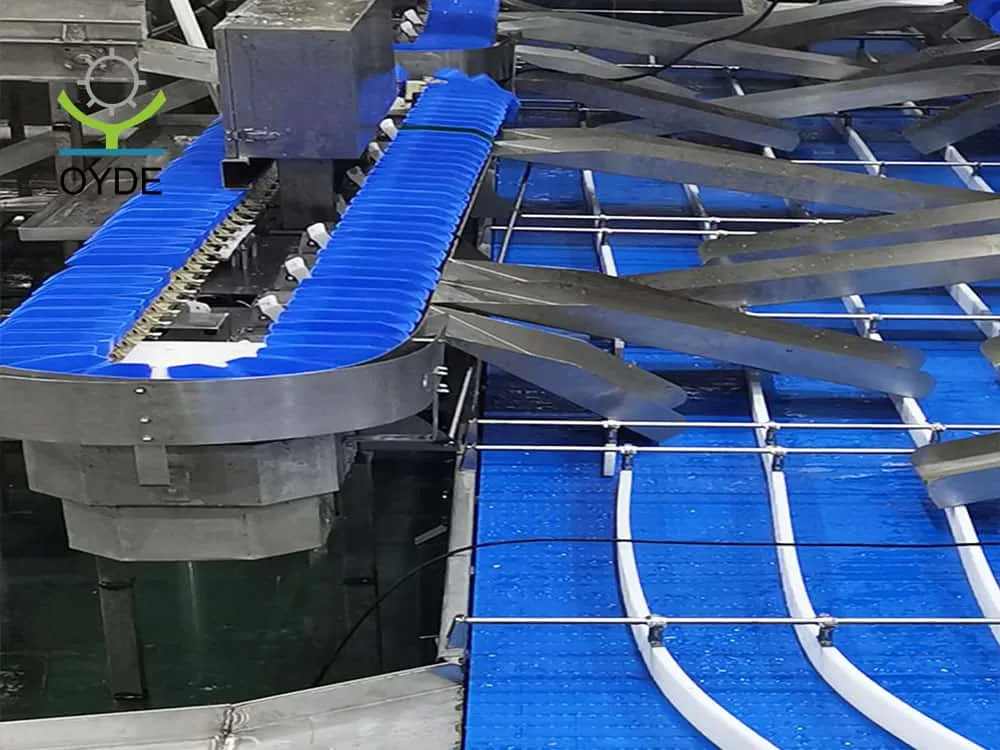

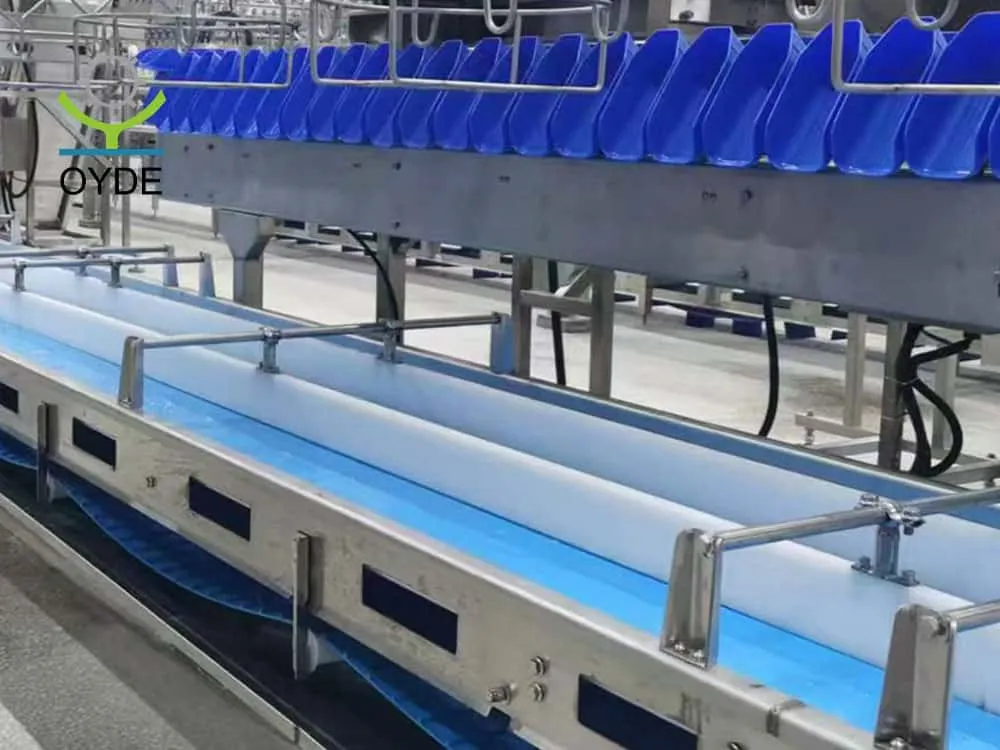

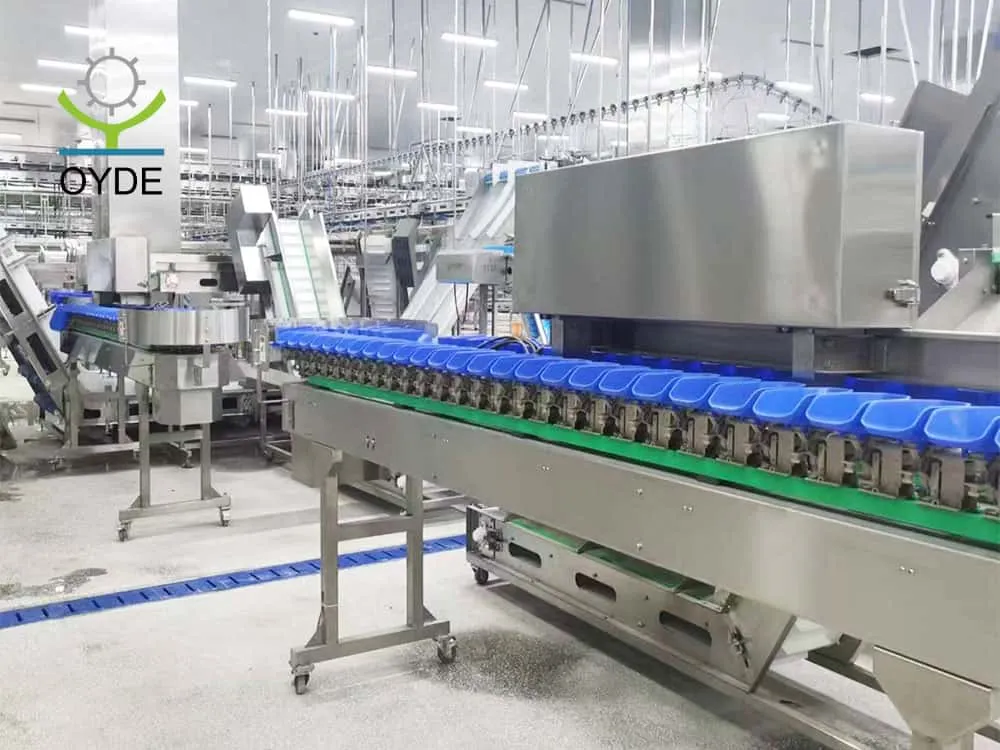

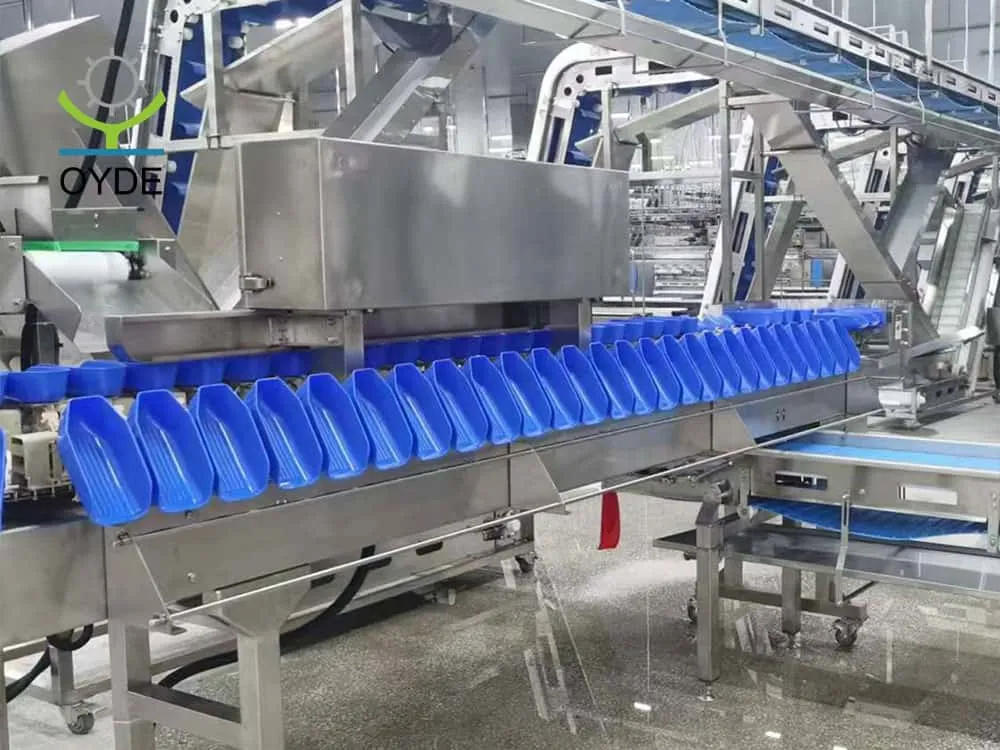

A box-type grading scale utilizes two sprockets to drive the rotation of fixed boxes on a chain. it employs weight sensors to initially weigh each individual box, calculating the weight of the materials within each box Then, through a diverting unit, it directs the respective box into the corresponding weight category based on the data.

Core Advantages

Why choose us?

  • 01.
    PROVEN EXPERTISE IN PRECISION WEIGHING

    With years of focus on aquatic and food processing industries, we deliver mature, field-tested sorting solutions trusted by thousands of processing plants . Our deep understanding of your production challenges ensures we solve real pain points, not just sell equipment.

  • 02.
    MAXIMIZE YIELD & PROFIT

    High-precision grading eliminates under/overweight losses, ensuring every product meets market standards and captures optimal pricing.

  • 03.
    SLASH LABOR COSTS

    Replace manual sorting with automated, 24/7 operation, cutting labor expenses by up to 60% while reducing human error.

  • 04.
    ENSURE COMPLIANCE & QUALITY

    Food-safe design and traceable data help you meet strict export and hygiene standards, building trust with global buyers.

Technical Specifications

Model NO. OYDE-F0000-07 OYDE-F0100-07 OYDE-F0200-05 OYDE-F0300-XX OYDE-F0400-XX OYDE-F0500-XX
WeighingRange 2-100g 10-200g 100-500g 500-3000g 100-1000g 500-5000g
Accuracy ±0.2g ±0.5g ±2g ±10g ±3g ±20g
Weighing sensor HBM
Box Type #00 #01 #02 #03 #04 #05
Box Size 150*90*20mm 200*90*55mm 230*110*60mm 330*170*80 240*125*60 450*220*150
Production Capacity 200-330/min 200-330/min 150-260/min 120-180/min 150-200/min 80-120/min
Removal Accuracy 98%
Max.load 10kg
Equipment Size L3620*W800*H1100mm L3620*W800*H1100mm L3450*W800*H1100mm Customized Customized Customized
Equipment weight 204kg 220kg 240kg 280kg 260kg 300kg
Packaging Size L3700*W900*H1200mm L3700*W900*H1200mm L3500*W830*H1400mm Customized Customized Customized
Box Material Food Grade PP
Equipment Material Stainless Steel 304
Options Hoist/horizontal conveyor/loading table/sliding chute/metering bucket
Driven Type Electric
Power Requirement 220V/AC 1.1KW Customizable
Packaging Material Solid wood fumigation
