Our belt-type weight sorting machine resolves corrosion, grading errors and fish damage in humid aquatic processing, with full SUS304 steel ensuring water resistance and stable operation for fish sorting lines.
This belt-type weight sorter is tailored for fish industry, featuring gentle belt conveying to protect fish integrity, high-precision HBM sensor weighing and adjustable speed for various fish specs.
Core selling points of the belt-type weight sorting machine include 98% removal accuracy, easy disassembly for cleaning, PLC+HMI operation, ideal for wet fish processing environments.
Full SUS304 stainless steel structure for superior corrosion & water resistance in humid fish processing
Belt-type weight sorting machine with smooth conveyor for gentle fish conveying, reducing damage and deformation
Belt-type weight sorter equipped with imported HBM sensor for high-precision dynamic weighing and accurate grading
Stepless speed regulation to adapt to sorting needs of various fish and fish fillet specifications
Automatic zeroing function eliminates weighing errors, ensuring stable and consistent sorting accuracy
Detachable conveyor belt for easy cleaning and maintenance, complying with aquatic food hygiene standards

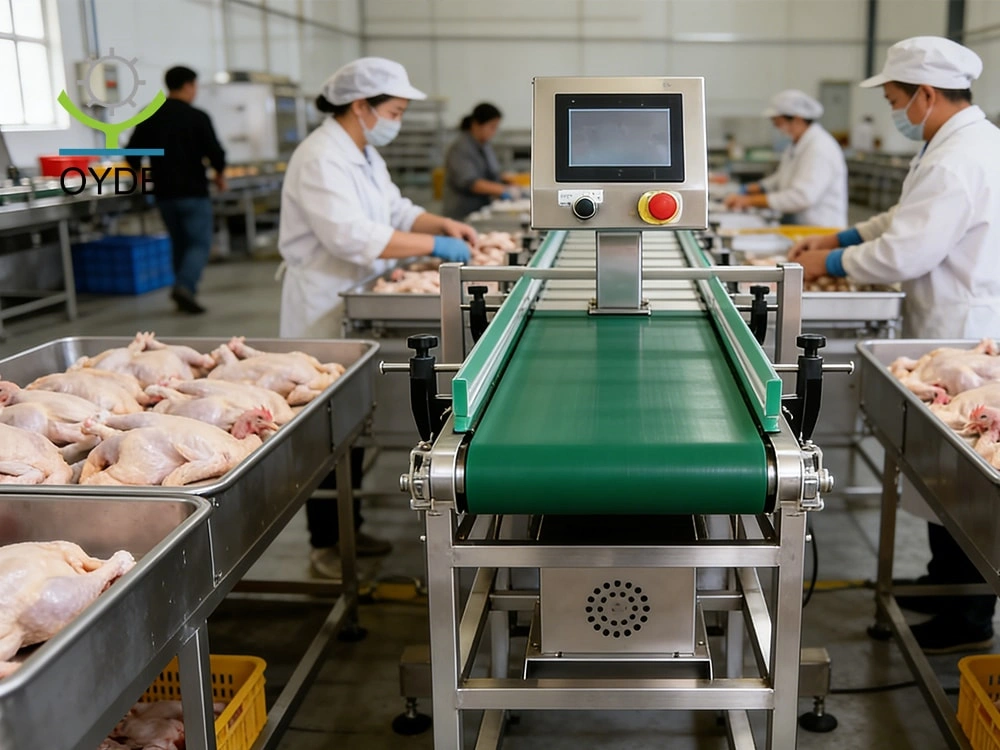

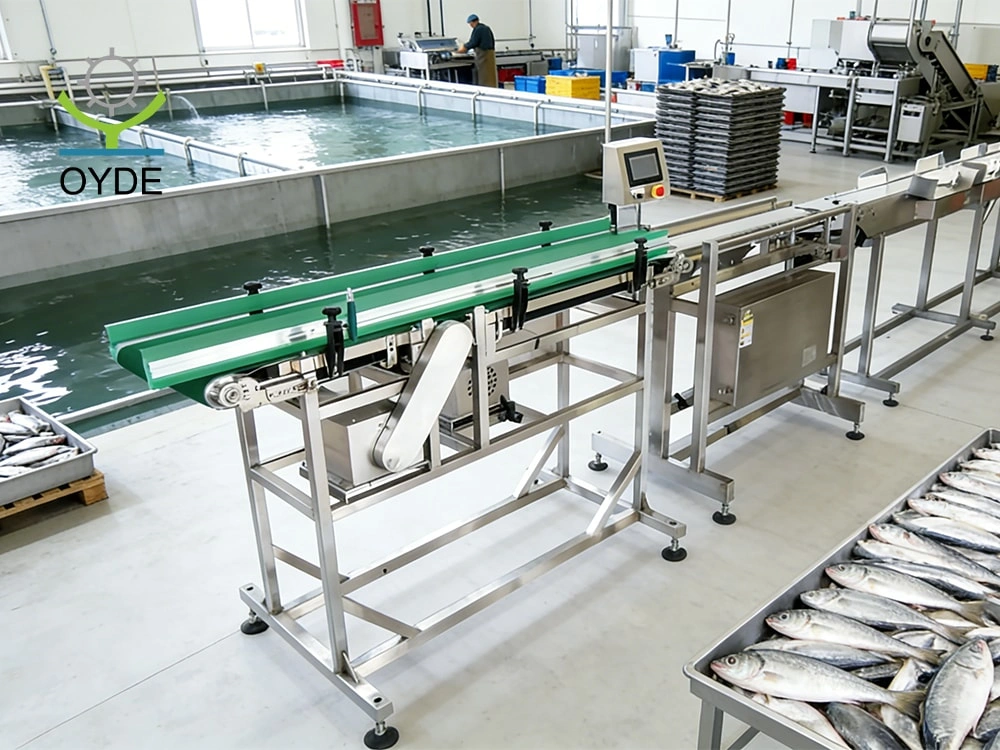

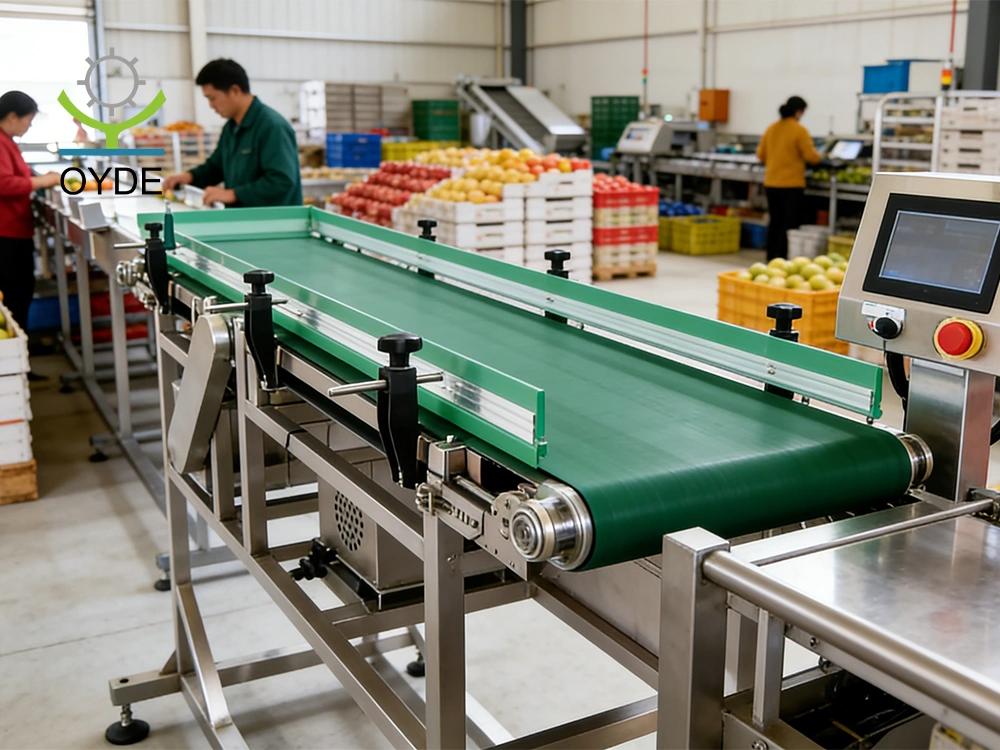

This belt-type weight sorter is widely applied in seafood, poultry, fruit and vegetable processing,for accurate weight grading of fish, shrimp, crab, meat products and agricultural produce.
With years of focus on aquatic and food processing industries, we deliver mature, field-tested sorting solutions trusted by thousands of processing plants . Our deep understanding of your production challenges ensures we solve real pain points, not just sell equipment.
We have obtained ISO 9001 quality system certification and CE certification, and have been honored with the title of "Integrity Enterprise." Furthermore, we have secured dozens of software copyrights, as well as invention and utility model patents.
Replace manual sorting with automated, 24/7 operation, cutting labor expenses by up to 60% while reducing human error.
Food-safe design and traceable data help you meet strict export and hygiene standards, building trust with global buyers.
| Model | OYDE-P04 | OYDE-P05 | OYDE-P06 | OYDE-P07 | OYDE-P08 | OYDE-P09 |
| Weighing range | 500g-20000g | |||||
| Detection object size | L(mm)1--600*W(mm)1--400 | |||||
| Sorting accuracy | ±5-±10g | |||||
| Production Capacity | 15000/h | |||||
| Weighing sensor | HBM | |||||
| Weighing section size | L600mm*W400mm(Customized) | |||||
| Belt height from ground | 680mm-750mm(Customized) | |||||
| Conveyor belt speed | 20m/min fixed speed or 15-30m/min adjustable speed(Customized) | |||||
| Touch Screen | 10.1 inch color TFT touch display | |||||
| Input voltage / power | Single Phase AC220V 50Hz/300W | |||||
| Material. Surface | 304 stainless steel surface polishing | |||||
| Machine Weight | 130KG | 140KG | 150Kg | 160KG | 170KG | 180KG |
| Equipment Size | L800*W850*H1200mm | L1200*W850*H1200mm | L1800*W850*H1200mm | L2000*W850*H1200mm | L2400*W850*H1200mm | L2800*W850*H1200mm |
| Package Size | L900*W1000*H1300mm | L1300*W1000*H1300mm | L2000*W1000*1300mm | L2100*W1000*H1300mm | L2500*W1000*H1300mm | L2900*W1000*H1300mm |
Looking for a weight sorting solution for your processing line?
Submit your requirements to get a customized quotation.
