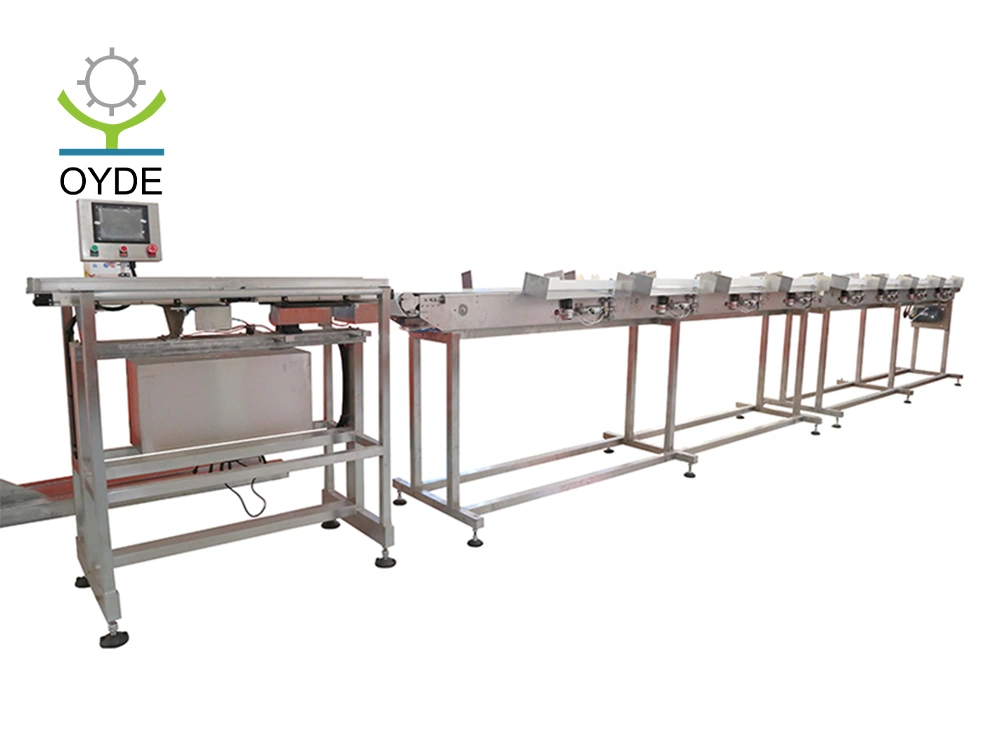

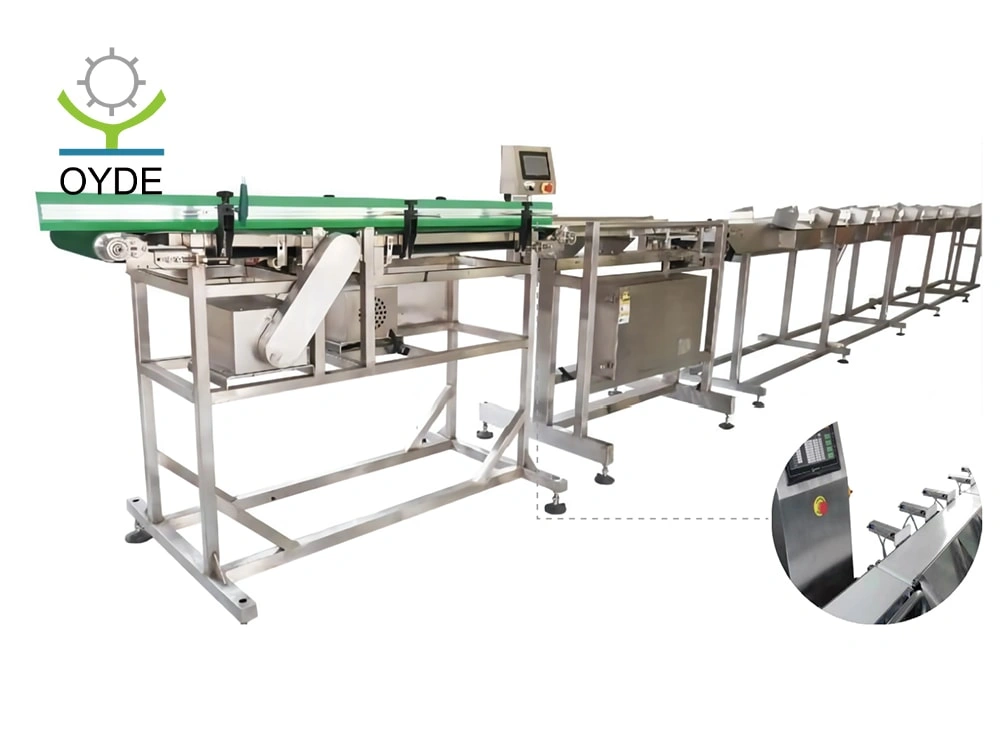

Our belt-type weight sorting machine solves low efficiency, grading errors and fruit damage in manual sorting, realizing automatic online weighing for various fruits and eliminating human-caused inaccuracy in fruit processing lines.
This belt-type weight sorter is tailored for the fruit industry, with gentle belt conveying to protect fruit appearance, adjustable speed and high-precision sensing, perfectly adapting to different fruit sorting requirements.
Core selling points of the belt-type weight sorting machine include HBM sensor accuracy, PLC+HMI one-click operation, easy disassembly for cleaning, a reliable choice for efficient fruit grading production.
Belt-type weight sorting machine with food-grade SUS304 stainless steel structure for hygienic fruit processing

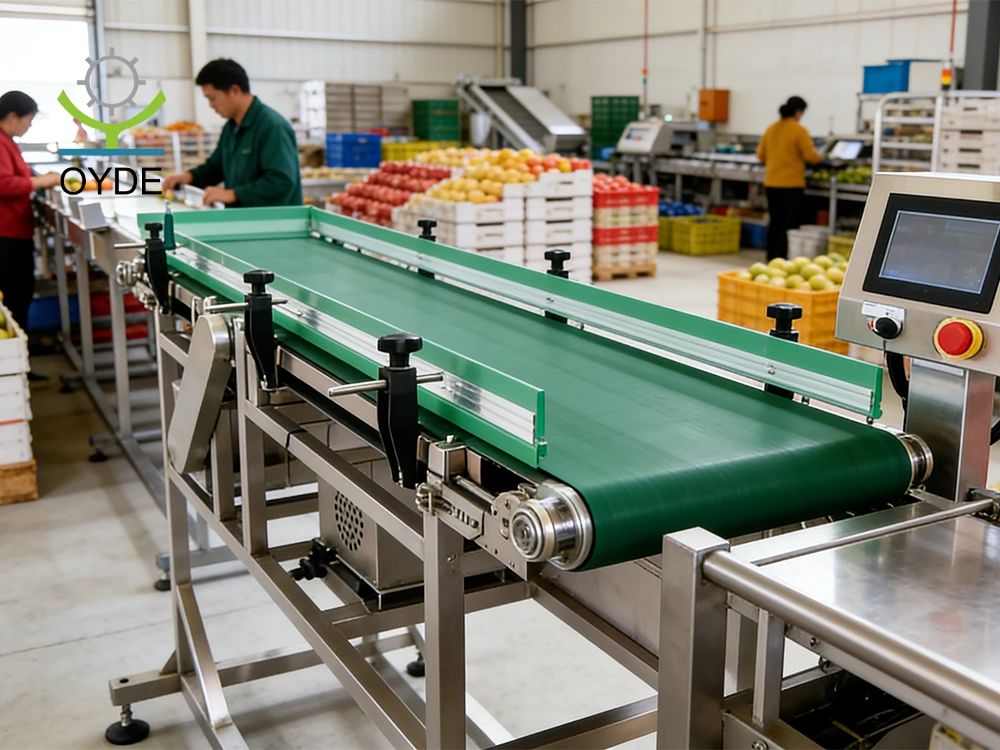

Belt-type weight sorter with gentle conveyor transmission to protect fruit appearance and reduce damage
High-efficiency sorting to replace manual operation, greatly improving fruit processing production capacity
Compact structure design, saving fruit processing workshop space and easy on-site layout
Seamless integration with automated production lines to realize continuous fruit sorting workflow
High rejection accuracy for unqualified products, strictly controlling fruit grading quality standards
This belt-type weight sorter is widely applied in seafood, poultry, fruit and vegetable processing,for accurate weight grading of fish, shrimp, crab, meat products and agricultural produce.
With years of focus on aquatic and food processing industries, we deliver mature, field-tested sorting solutions trusted by thousands of processing plants . Our deep understanding of your production challenges ensures we solve real pain points, not just sell equipment.
We have obtained ISO 9001 quality system certification and CE certification, and have been honored with the title of "Integrity Enterprise." Furthermore, we have secured dozens of software copyrights, as well as invention and utility model patents.
Replace manual sorting with automated, 24/7 operation, cutting labor expenses by up to 60% while reducing human error.
Food-safe design and traceable data help you meet strict export and hygiene standards, building trust with global buyers.
| Model | OYDE-P04 | OYDE-P05 | OYDE-P06 | OYDE-P07 | OYDE-P08 | OYDE-P09 |
| Weighing range | 500g-20000g | |||||
| Detection object size | L(mm)1--600*W(mm)1--400 | |||||
| Sorting accuracy | ±5-±10g | |||||
| Production Capacity | 15000/h | |||||
| Weighing sensor | HBM | |||||
| Weighing section size | L600mm*W400mm(Customized) | |||||
| Belt height from ground | 680mm-750mm(Customized) | |||||
| Conveyor belt speed | 20m/min fixed speed or 15-30m/min adjustable speed(Customized) | |||||
| Touch Screen | 10.1 inch color TFT touch display | |||||
| Input voltage / power | Single Phase AC220V 50Hz/300W | |||||
| Material. Surface | 304 stainless steel surface polishing | |||||
| Machine Weight | 130KG | 140KG | 150Kg | 160KG | 170KG | 180KG |
| Equipment Size | L800*W850*H1200mm | L1200*W850*H1200mm | L1800*W850*H1200mm | L2000*W850*H1200mm | L2400*W850*H1200mm | L2800*W850*H1200mm |
| Package Size | L900*W1000*H1300mm | L1300*W1000*H1300mm | L2000*W1000*1300mm | L2100*W1000*H1300mm | L2500*W1000*H1300mm | L2900*W1000*H1300mm |
Looking for a weight sorting solution for your processing line?
Submit your requirements to get a customized quotation.
